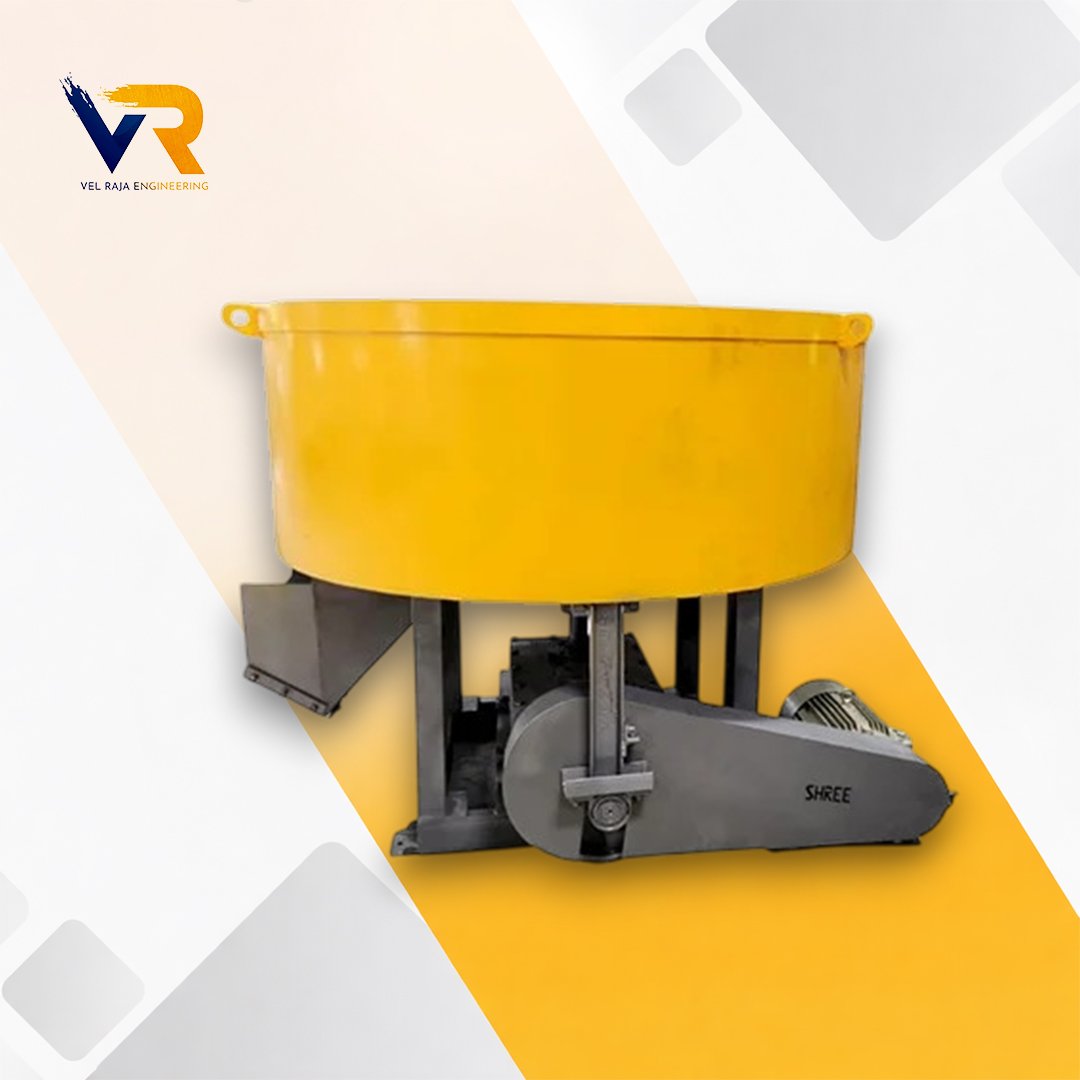

Pan Mixer Machine 250 Kgs

The Pan Mixer Machine 250 KG is designed to deliver powerful and uniform mixing for concrete, fly ash, and other construction materials. Built with a heavy-duty steel body and precision-engineered components, this mixer ensures excellent performance, long service life, and low maintenance. Its 250-kg capacity makes it ideal for medium to large-scale production units involved in block making, paver manufacturing, and construction material preparation.

Specification

Output Capacity250 Kg
Motor5 HP
Output RPM30-40 RPM
Discharge SystemBottom Opening Sliding Type
Make of MotorCrompton
Cell Dia1250 MM (Thickness 6 MM)
Cell Height625 MM
Bottom Plate Thickness10 MM
Cycle Time5-8 Min
