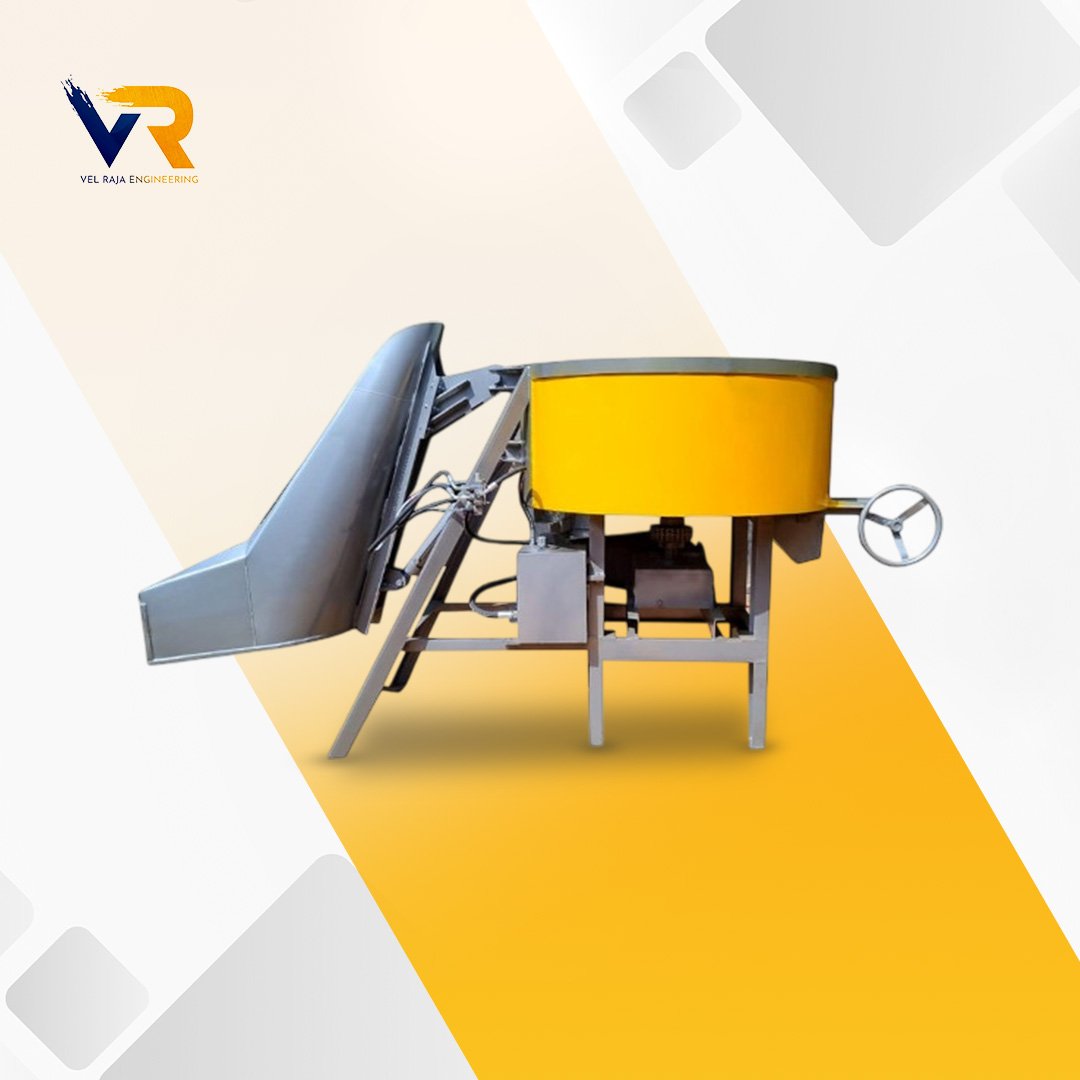

Pan Mixer Machine with Hopper 750 KG
The 750 KG Pan Mixer Machine with Hopper is a heavy-duty solution crafted for maximum productivity and continuous operation. With its high-capacity mixing pan, strong rotor blades, and efficient hopper mechanism, it ensures fast, consistent, and homogenous mixing even with tough materials. Suitable for large-scale block manufacturing plants, concrete product industries, and demanding industrial environments, this machine delivers exceptional performance and durability.
Specification
| Output Capacity | 750 Kg |
| Cell Dia | 1650 mm |
| Cell Height | 700 mm |
| Scrapers | 2 Rollers and 2 Hand type |
| Motor | 20 HP |
| RPM | 30-40 RPM |
| Discharge System | Bottom Opening Sliding Type |
| Door Opening and Closing System | Manually |
| Cell Bottom Plate | 10 mm thick and in addition to the above 10 mm thick wear plate will be provided in segments for easy maintenance |
| Make of Motor | Crompton |
| Cycle Time | 5-8 min |
| Coupling Method | In between gear box and drive unit chains bracket arrangement will be provided to avoid woddling |
