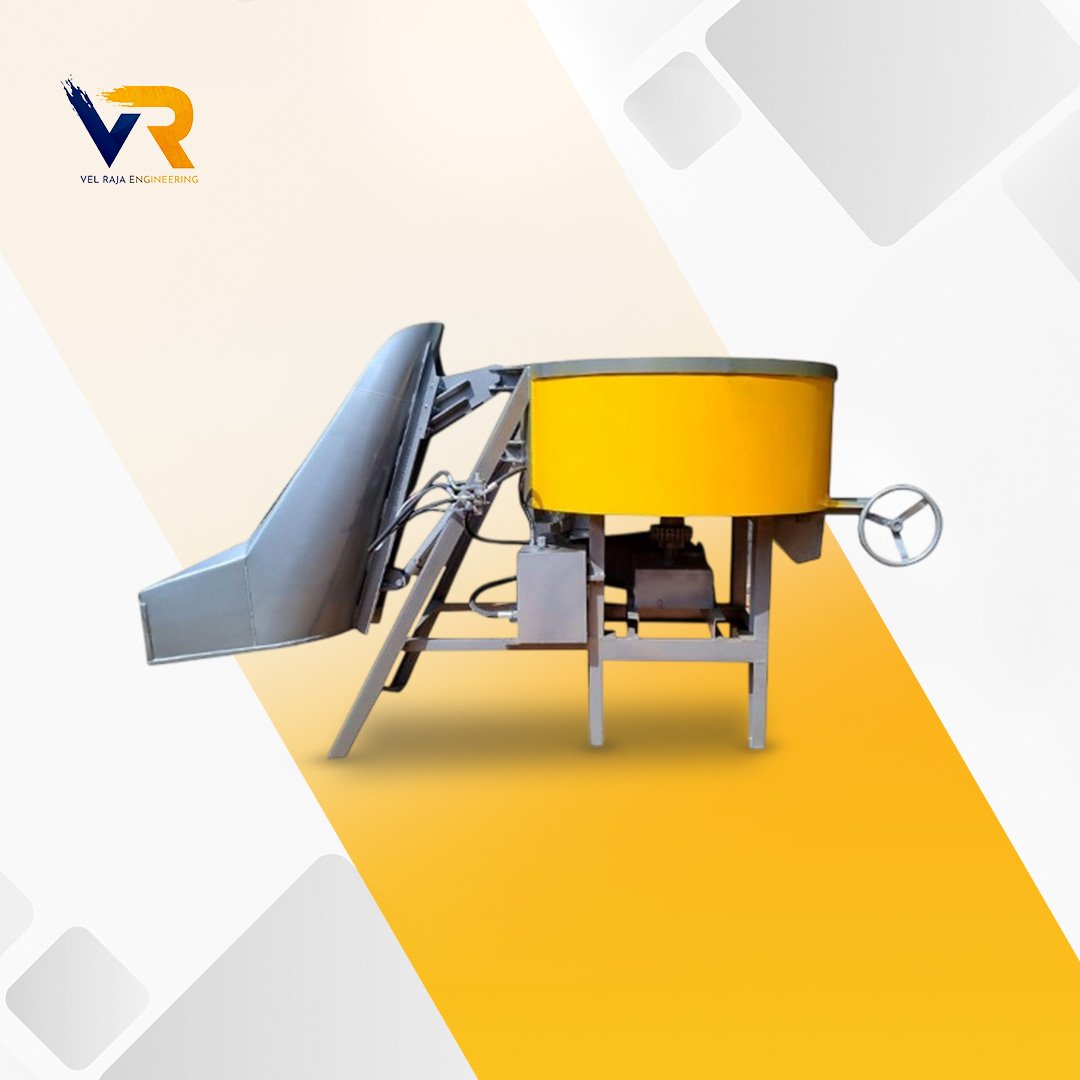

Pan Mixer Machine with Hopper 350 KG
Our 350 KG Pan Mixer Machine with Hopper is designed for medium–heavy mixing operations, ensuring uniform blending of concrete, mortar, and raw materials. The integrated hopper system allows effortless material feeding, improving workflow efficiency. With strong mixing blades and a durable steel body, it delivers consistent output and long-lasting performance—ideal for paver block units, tile plants, and construction industries.
Specification
| Output Capacity | 350 Kg |
| Cell Dia | 1400 mm |
| Cell Height | 600 mm |
| Scrapers | 2 Rollers and 2 Hand type |
| Motor | 7.5 HP |
| RPM | 30-40 RPM |
| Discharge System | Bottom Opening Sliding Type |
| Door Opening and Closing System | Manually |
| Cell Bottom Plate | 10 mm thick and in addition to the above 10 mm thick wear plate will be provided in segments for easy maintenance |
| Make of Motor | Crompton |
| Cycle Time | 5-8 min |
| Coupling Method | In between gear box and drive unit chains bracket arrangement will be provided to avoid woddling |
